Fire Extinguisher

"Stay protected with top-quality fire safety equipment from the leading fire protection company in Coimbatore and Chennai, ensuring your safety is our priority."

ABC Stored Pressure Type Fire Extinguisher

Suitable for class ‘A’ ‘B’ & ‘C’ Fires-Papers, Wood, Cloth, Plastics / Petrol, Diesel, Paints, Chemicals, Petroleum Products / LPG, Natural Gases / Electrical Fires, Machinery Fires.

Performance data

Capacity	1Kg	2Kgs.	4Kgs.	6Kgs.	9Kgs.
Jet minimum range (in mtrs)	2	2	4	4	6
Minimum Period in sec	8	8	15	15	23
Maximum Period in sec	10	10	20	20	30
Minimum % of discharge	85	85	85	85	85

ABC Modular Type Fire Extinguisher

Automatic Ceiling & Wall Mount

Performance data

Model	ABC 5 Kg	ABC 10 Kg
Media	MAP Powder	MAP Powder
Capacity	5 Kgs.	10 Kgs.
Area Coverage	3M approx	3M approx
Test Pressure	30 bar	30 bar
Anti-Corrosive Treatment	Powder Coated	Powder Coated
Shell Diameter	230 mm.	230 mm.
Overall Height	350 mm	350 mm
Charged weight	9.5 Kg	10 Kg
Bulb Temperature	68 C	68 C
Charged Pressure	15 bar	15 bar
Mounting	Ceiling/Wall mount type	Ceiling/Wall mount type

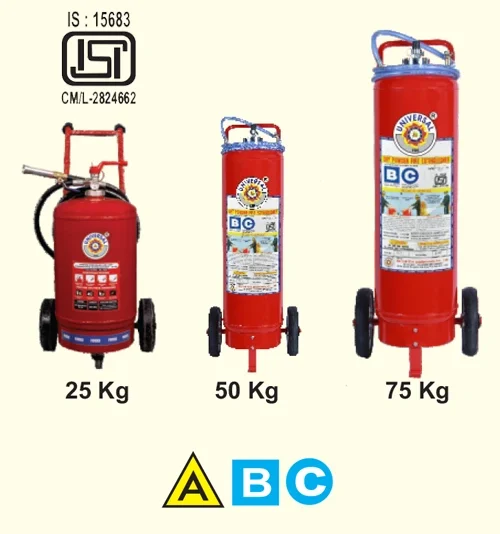

Trolley Mounted Fire Extinguisher ABC & BC Type

Suitable for ‘A’ ‘B’& ‘C’ – Flammable Liquids,Gas Storage & Power House

Performance data
Fire Extinguisher Capacity	25 Kg I/C	25 Kg O/C	50 Kg	75 Kg
Minimum Period for which throw of Jet Maintained	25 sec	25 sec	40 sec	50 sec
Minimum Pressure to Discharge At least 90% of Contents	30 sec	30 sec	50 sec	60 sec
Range of Jet	5 mtr	6 mtr	8 mtr	10 mtr
Empty. Wt. (Approx.)	24 Kg	30 Kg	60 Kg	75 Kg
Full Wt.(Approx.)	50 Kg	55 Kg	110 Kg	150 Kg
Working Pressure	15 bar	15 bar	15 bar	15 bar
Hydro Pressure	35 bar	35 bar	35 bar	35 bar
Bursting Pressure	45 bar	55 bar	55 bar	55 bar

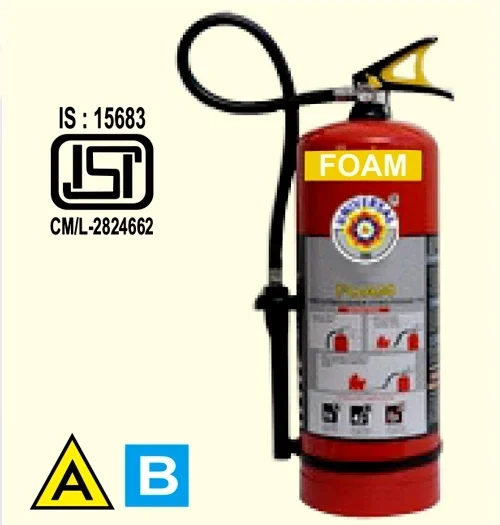

Mechanical Foam Type Fire Extinguisher (Available in Cartridge Type also)

Suitable for ‘A’ & ‘B’ Class Fire – Papers, Wood, Paints, Gases, Chemicals, PetroleumProducts (Oil & Diesel Storage Tanks)

Performance data
Capacity	9 L
Fire Rating	4 A : 34 B
Average Discharge Time	50 sec
Height (Approx.)	5 mtr
Diameter (Approx.)	180 + 10 mm
Filled Weight (Approx.)	12.5 Kg
Empty Weight (Approx.)	3.8 Kg
Operating Temporature	+5 C to +55 C
Working Pressure at 20C	15 bar
Maximum service Pressure	17 bar
Test Pressure	35 bar
Approval	BIS

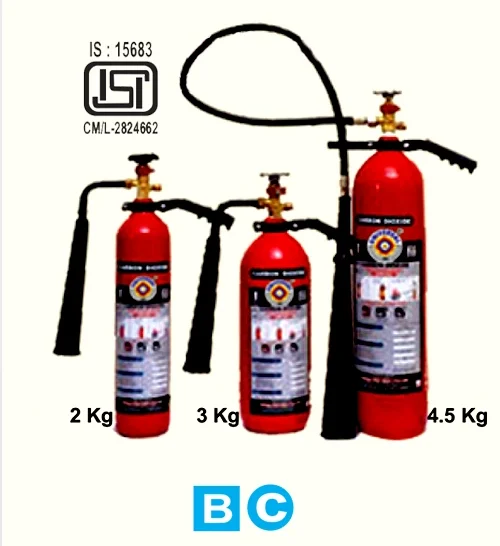

Carbon Dioxide fire Extinguisher

Suitable for ‘A’ & ‘B’ Class Fire – Electrical Panel Boards, Machineries & Electronics

Performance data
Model	2	3	4.5
Capacity	2 Kg	3 Kg	4.5 Kg
Fire Rating	8 B	13 B	21 B
Average Discharge Time	12 Sec	14 Sec	14 Sec
Height (Approx.)	425	470	610
Diameter (Approx.)	108 mm + 10 mm	140 mm + 10 mm	140 mm + 10 mm
Filled Weight (Approx.)	8.9 Kg or 8.2 Kg	12.5 Kg or 11.8 Kg	17 Kg or 16.3 Kg
Empty Weight (Approx.)	6.9 Kg or 6.2 Kg	9.5 Kg or 8.8 Kg	12.5 Kg or 11.8 Kg
Operating Temporature	30C to +55C	30C to +55C	30C to +55C
Working Pressure at 20C	150 bar	150 bar	150 bar
Maximum service Pressure	250 bar	250 bar	250 bar
Approval	BIS	BIS	BIS

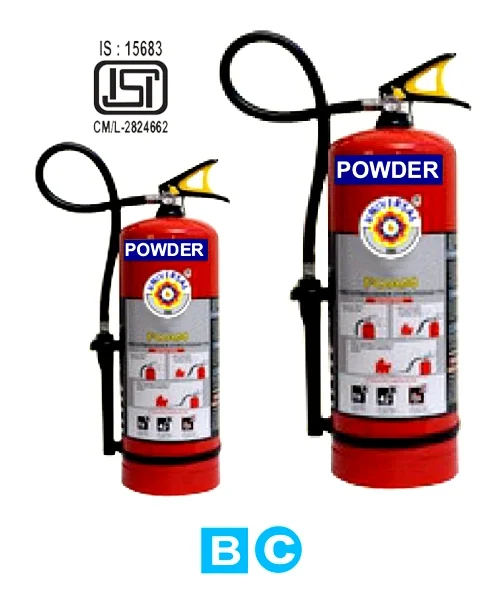

Dry Powder Type Fire Extinguisher (Available in cartridge Type also)

Suitable for B & C class of fire – Flammable Liquids, Gases, Machinery Fires, Electrical Fire

Performance data
Fire Extinguisher Capacity	6 Kg	7 Kg
Minimum Period for which throw of Jet Maintained	20 sec	25 sec
Minimum Pressure to Discharge At least 90% of Contents	25 sec	30 sec
Range of Jet	4 mtr	6 mtr
Empty. Wt.(Approx.)	5.2 Kg	7.05 Kg
Full Wt (Approx.)	11.2 Kg	16.02 Kg
Fire Rating	3A, 34B	4A, 34B
Working Pressure	15 bar	15 bar
Hydro Pressure	35 bar	35 bar
Bursting Pressure	55 bar	55 bar

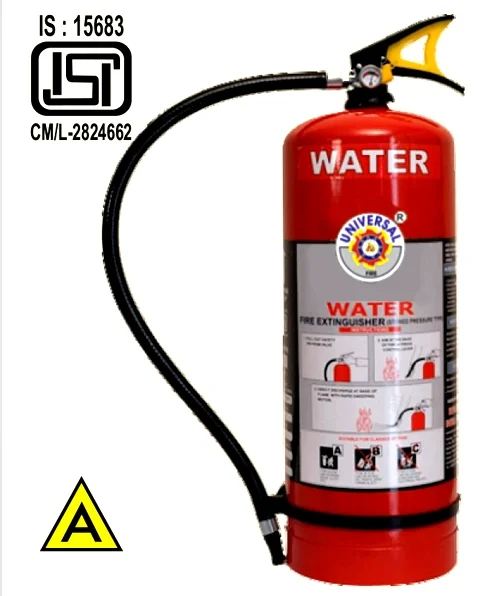

Water Type Fire Extinguisher (Available in cartridge Type also)

Suitable for ‘A’ Class Fire – Papers, Textile, Cloth, Wood & Cotton Storage

Performance data
Model	9
Capacity	9 L
Fire Rating	3 A
Average Discharge Time	42 sec
Height (Approx.)	575 mm
Diameter (Approx.)	180 + 10 mm
Filled Weight (Approx.)	12.5 Kg
Empty Weight (Approx.)	3.7 Kg
Operating Temporature	+5 C to +55 C
Working Pressure at 20C	15 bar
Maximum service Pressure	17 bar
Test Pressure	35 bar
Approval	BIS

Our team comprises highly skilled engineers and technicians, each an expert in their specific domains. Operating around the clock, we are dedicated to delivering top-notch products, ensuring that our valued clients receive the highest quality solutions.
